The configurable LVDS oscillator of the ECS can be used to extend the frequency range

gen 25 2023 2023-01 Power ECS
Article Cover

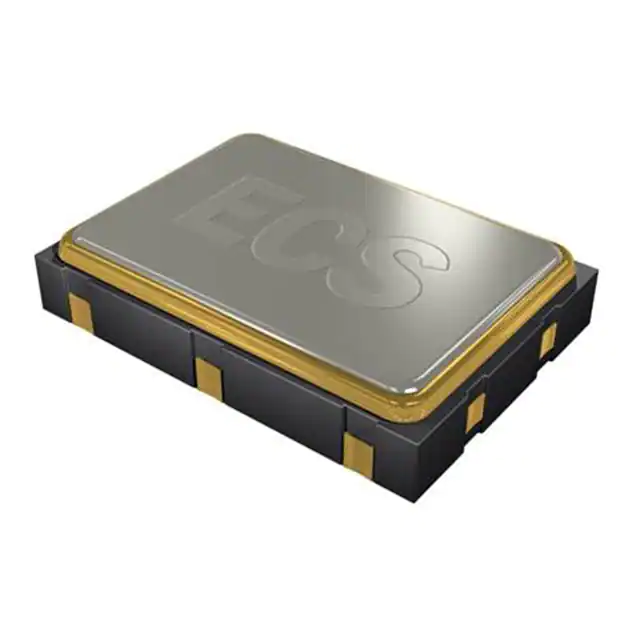

The ECS ECSpressCON family of features meets more than 95% of today's quartz oscillator needs, thanks to its configurability and ability to meet the user's exact design specifications in off-the-shelf delivery. The ECX-L is a low-jitter, low-current, frequency-configurable, surface-mount crystal controlled oscillator with a 2.5V or 3.3V supply voltage. ECX-L is available in a variety of package sizes ranging from as small as 2.5 mm x 2.0 mm to as large as 7.0 mm x 5.0 mm with frequencies between 10 MHz and 1,500 MHz

The ECS ECSpressCON family of features meets more than 95% of today's quartz oscillator needs, thanks to its configurability and ability to meet the user's exact design specifications in off-the-shelf delivery. The ECX-L is a low-jitter, low-current, frequency-configurable, surface-mount crystal controlled oscillator with a 2.5V or 3.3V supply voltage. ECX-L is available in a variety of package sizes ranging from as small as 2.5 mm x 2.0 mm to as large as 7.0 mm x 5.0 mm with frequencies between 10 MHz and 1,500 MHz.



ECS has released an additional part number in the ECX-L LVDS ECSpressCON oscillator family. The new models include specific frequencies such as 100 MHz, 125 MHz, 156.250 MHz and 200 MHz and are available in 5.0 mm x 3.2 mm and 7.0 mm x 5.0 mm package sizes. These devices operate in the standard industrial operating temperature range of -40°C to 85°C using a combination of standard 2.5V and 3.3V supply voltages.



Features

● Available in various packaging sizes:

-   2.5 mm x 2.0 mm
-   3.2 mm x 2.5 mm
-   5.0 mm x 3.2 mm
-   7.0 mm x 5.0 mm

● Available power supply voltage options: 2.5V (ECS-L2), 3.3V (ECS-L3)
● Low jitter: 1 pS
● Low current: 16 mA ~ 28 mA frequency dependent
● Wide frequency range: 1 MHz to 1,500 MHz
● Standard operating temperature range: -40°C to +85°C
● Extended operating temperature is available
● Frequency stability options: ±20 ppm, ±25 ppm, ±50 ppm, ±100 ppm
● LVDS complementary output



Applications

● Network
● Communication
● Internet of things
● Data storage
● Mobile device
● Wireless equipment
● Measurement and measurement
