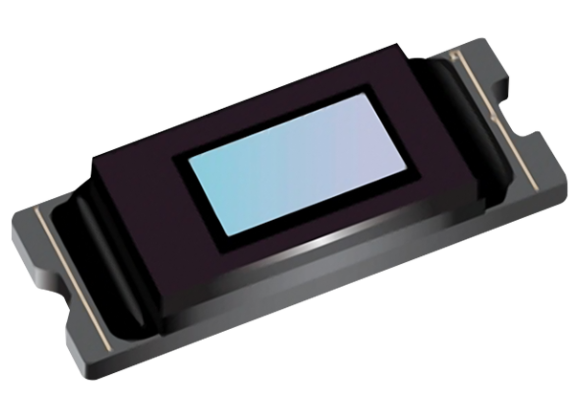

Texas Instruments DLP301S Near Ultraviolet Digital Micromirror Device (DMD)

Texas Instruments DLP301S Near Ultraviolet Digital Micromirror Device (DMD) is a digitally controlled micro-electromechanical system (MOEMS) spatial light modulator (SLM). When coupled with the appropriate optical system, the DMD displays clear, high-quality images.

Texas Instruments DLP301S is part of a chipset consisting of the DLP301S DMD, DLPC1438 3D Printed controller, and DLPA200x/DLPA300x PMIC/LED drivers. The DMD features a compact physical size, plus controllers and PMIC/LED drivers, providing a complete system solution that supports a high-output optical engine for fast, high-resolution, reliable DLP 3D printers.

Features

● 0.3 inch (7.93mm) diagonal micromirror array
● 1280 × 720 aluminum micromirror array with orthogonal layout
● 3.6 megapixels 2560 x 1440 pixels (on resin)
● 5.4 micron micromirror spacing
● ±17° micromirror inclination (relative to plane)
● Side lighting to achieve optimal efficiency and optical engine size
● An aluminum micromirror surface that is not affected by polarization
● The 8-bit SubLVDS input data bus
● Dedicated DLPC1438 3D printed controller and DLPA200x or DLPA300x PMIC/LED drivers ensure reliable operation

Applications

● TI DLP 3D printer
● Additive manufacturing
● Photopolymerization
● Shielding stereo light curing (mSLA 3D Printer)
● Dental DLP 3D printer
● Exposure: Programmable time-space exposure
