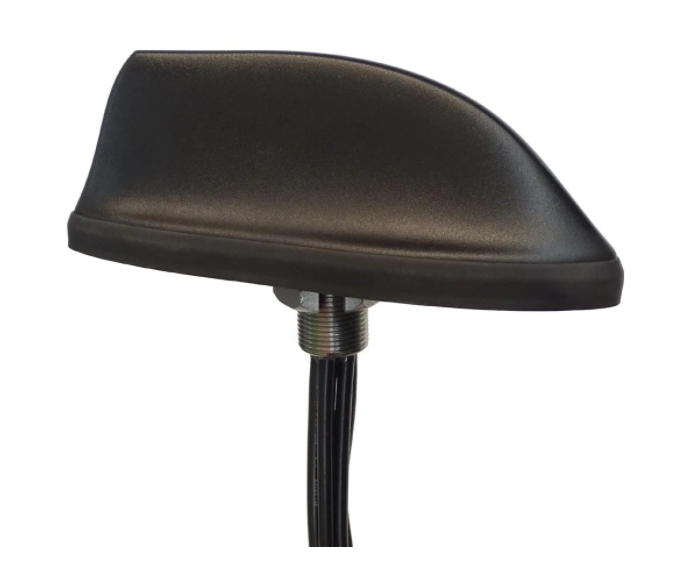

Pulse's SKF5G antenna is equipped with an active L1/L2 GNSS and can be used in any 5G-FR1 and WiFi-6E application
Pulse (owned by YAGEO) offers 5G-FR1 and WiFi-6E multi-frequency antenna SKF5G. It is a thin multi-band antenna with an attractive OEM shape, rugged construction, and superior performance across all key bands. The antenna covers a wide frequency range of 617 MHz to 960 MHz/1450 MHz to 7125 MHz via active L1/L2 GNSS and can be used in any 5G-FR1 and WiFi-6E applications.
SKF5G provides excellent performance across the entire operating frequency range, with a minimum gain of 2dBi and a rated efficiency of 50%. With its OEM finned package, IP67 protection rating, rugged design, and minimal size of just 52.5mm wide, SKF5G is ideal for vehicle and transportation applications.
The SKF5G design has up to six cable leads and can be customized based on the number of leads, cable length, and connector type for design flexibility and easy integration into user projects. SKF5G is designed to meet the demanding requirements of a wide range of applications, including fleet management, FirstNet/ Public Safety, DSRC/CV2X, and more, to optimize and complement any WiFi-6E, 5G-FR1, and CBRS networks
Features
● Wide frequency range: 617 MHz to 960 MHz/1450 MHz to 7125 MHz
- 2 × 2 MiMo Cellular, 5G-FR1 (4G-LTE backup)
- 2 x 2 MiMo WiFi-6E, DSRC/V2X
- L1/L2 active GNSS
● Customizable cable length, connector type, and cable lead number
● Strong mechanical design
- IP67 protection level
- 5 mm wide x 62 mm high
● Designed for optimal performance in critical frequency bands
- Average peak gain: 2.3dBi at 617 MHz to 960 MHz, 4.5dBi at 1710 MHz to 4200 MHz, 5.0dBi at 4400 MHz to 7125 MHz
