ADI Trinamic unveils a new generation of high performance stepper motor driver ics

Enabling motors to move quietly, precisely and efficiently, ADI Trinamic's family of stepping motor driver solutions is renowned in the industry. For example, TMC2208 provides an integrated motor driver solution for 3D printing, cameras, scanners and other automation device applications with an integrated microstepping dispatcher, StealthChop2, a completely noiseless current control mode, is designed to drive bipolar stepper motors.

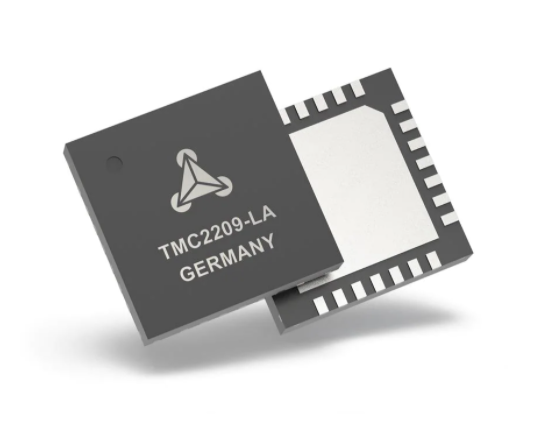

Unlike other choppers, StealthChop2 reduces the noise of 3D printers by 15dB or more without having to configure them in advance. The TMC2209 supports higher currents and also conforms to lower operating voltages. TMC2130, a high-performance driver chip for two-phase stepper motors, offers up to 256 times microsteps compared to the industry standard 16 times microsteps, thus providing extremely smooth, precise motion control, achieving high precision positioning and minimum resonance, while having the highest efficiency and optimal motor torque.

ADI Trinamic offers a new generation of TMC2240 intelligent high-performance stepper motor driver IC with high integration, high energy efficiency and a smaller profile that makes a miniaturized and scalable system a cost-effective solution. Based on a 256-step built-in divider and two fully integrated 36V, maximum 3.0A H-bridge drives, as well as fully integrated non-destructive current induction (ICS), the driver provides higher performance and is suitable for applications in the textile machine industry, 3D printing industry, medical industry, etc. Satisfied with industrial automation, office automation, home automation, massage chair and other fields of product upgrades.

● Larger power, lower calorific value;

● Integrated current detection resistance;

● CoolStep (Current Energy Saving Control) Current control, energy saving up to 75%;

● Universal analog input full protection and diagnosis;

● Passive braking and free wheel mode;

● Short circuit protection, undervoltage locking, chip overheating protection (heat off);

● Compared to the TMC2209, the new TMC2240 features include:

● Built-in MOS tube, on-resistance reduction;

● Support larger voltage, maximum 3.0A current, suitable for higher fields of 3D printing work, and longer working time is not easy to heat and damage;

● Integrated StallGuard2 and StallGuard4 sensorless motor load detection;

● Support direct phase control, temperature sensor, MicroPlyer (microstep interpolator), single line UART function applications

● Added SPI communication interface protocol;

● Fully integrated non-destructive current induction (ICS);

● Incremental encoder interface;

● The jitter free combination of StealthChop and SpreadCycle solves the motor pulsation problem of chopper switching speed points.
