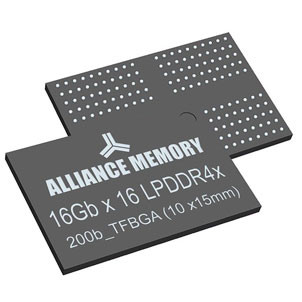

A new single-channel 16Gb LPDDR4X device

     Alliance Memory has announced that its high-speed CMOS mobile low-power sdram has been expanded to a new single-channel 16Gb LPDDR4X device. The device combines low power ratings with higher clock speeds and data rates in a 200-ball FBGA package.

     With a low voltage operating voltage of 0.6V, the AS4C1G16MD4V-046BIN provides increased power efficiency and extended battery life for portable electronics in consumer, commercial and industrial markets, including smartphones, smart speakers, wearables, security monitoring systems, and other iot devices using AI and 5G technologies.

     LPDDR4X SDRAM provides increased efficiency for advanced audio and ultra-high resolution video in embedded applications. It has a high clock frequency of 2.133GHz, allowing for extremely high data rates of 4.2Gbps. The equipment operates in the industrial temperature range of -40 ° C to +95 ° C.

     The single channel of the device consists of 8 groups of 16 bits. This component provides fully synchronized operations; Programmable read and write burst length 16,32, and in flight; Drive strength can be configured. The on-chip temperature sensor controls the self-refresh rate.

     The company's LPDDR4X sdram provides a reliable plug-in, pin-to-pin compatible alternative to many similar solutions in high-bandwidth, high-performance storage system applications, eliminating the need for costly redesigns and part re-certification.
